Servo drives connected to the press are special servo motor and driver systems used in sheet metal feeding systems.
These systems provide high precision, speed control and efficiency in the sheet feeding process. servo motors,
can control its position and speed very precisely, operate at high speeds and have large torque
can produce. It provides more efficient operation by optimizing energy consumption and provides
Different prescriptions can be applied. The 4 gear drive in the mechanical system ensures synchronized operation of the system.
In this way, each press stroke is repeated with the same precision, contributing to increasing product quality.
They consume less energy, are quieter and vibration-free compared to traditional hydraulic and pneumatic systems.
they work. Thanks to advanced sensor control systems, abnormal situations are quickly detected during operation
can be addressed and resolved. In industrial applications requiring high precision and repeatability
Servo drives connected to the press, which are indispensable, offer many advantages over traditional press systems.
It plays an important role in modern production lines.

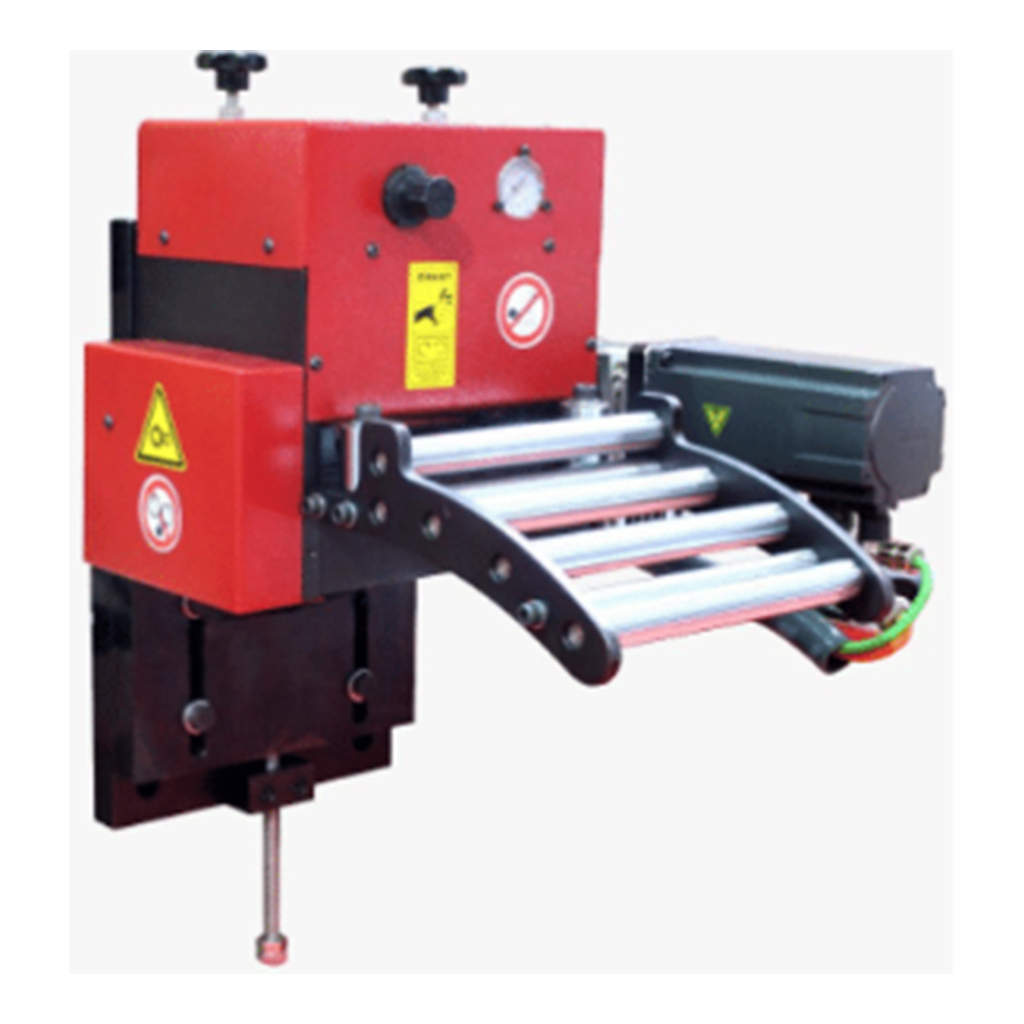

Servo Drives Connected to Press
Ø60 induction application rollers (57-62 Rokvel hardness),
Driven by a gear group that moves from each other,
Pressure with short stroke pneumatic piston (4 Bar),
Angled swing system in the upper roller group,
Manually locking the upper roller group,
Manual rigid coil guidance and swing group,
7″ Touch screen,
Electronic parts (Driver, Motor, PLC, Display),
Plotting system,
999 mold memories (based on special recipe creation),
Electronic panel design provides easy use for the operator,
It produces hair fed from the roller, ensuring that the final product comes
out with the desired quality,
Depending on the sheet thickness, a roller group with a roller diameter of Ø80 can be used.
- 100 mm wide sheet rolling,
- Rolling capacity for sheets in the range of 0.20 – 1.5 mm thickness,
- Ø60 induction rolling rollers (57-62 Rockwell hardness),
- Driven by gear group with independent movement,
- Press with short stroke pneumatic piston (4 Bar),
- Angled swing system in the upper roller group,
- Manual locking of the upper roller group,
- 50 Body gear backlash servo reducer,
- Manual hard coil guiding and swing group,
- Servo motor,
- Güç : 0.75 kW
- Max Speed : 3000 rpm
- Encoder : 2500 pulse
- Nominal Torque : 2.39 Nm
- Max Torque : 7.17 Nm
- 7″ Touch screen,
- Electronic components (Driver, Motor, PLC, Screen),
- Plotting system,
- Memory for 999 molds (Based on creating special recipes),
- Electronic panel design provides ease of use for the operator,
- Manually adjustable with 8-level adjustable M12 stud,
- The product is manufactured with this system,
- Produces sheet fed from the roll, ensuring the final product meets the desired quality,
- Depending on the sheet thickness, a roller group with a diameter of Ø80 can be used.
- 200 mm wide sheet rolling,
- Rolling capacity for sheets in the range of 0.30 – 3 mm thickness,
- Ø60 induction rolling rollers (57-62 Rockwell hardness),
- Driven by gear group with independent movement,
- Press with short stroke pneumatic piston (4 Bar),
- Angled swing system in the upper roller group,
- Manual locking of the upper roller group,
- 63 Body gear backlash servo reducer,
- Manual hard coil guiding and swing group,
- 1.5 kW Servo motor,
- Güç : 1.5 kW
- Max Speed : 2000 rpm
- Encoder : 2500 pulse
- Nominal Torque : 5 Nm
- Max Torque : 12.55 Nm
- 7″ Touch screen,
- Electronic components (Driver, Motor, PLC, Screen),
- Plotting system,
- Memory for 999 molds (Based on creating special recipes),
- Electronic panel design provides ease of use for the operator,
- Manually adjustable with 8-level adjustable M12 stud,
- The product is manufactured by connecting to the press,
- Produces sheet fed from the roll, ensuring the final product meets the desired quality,
- Depending on the sheet thickness, a roller group with a diameter of Ø80 can be used.
- 300 mm wide sheet rolling,
- Rolling capacity for sheets in the range of 0.30 – 2 mm thickness,
- Ø60 induction rolling rollers (57-62 Rockwell hardness),
- Driven by gear group with independent movement,
- Press with short stroke pneumatic piston (4 Bar),
- Angled swing system in the upper roller group,
- Manual locking of the upper roller group,
- 63 Body gear backlash servo reducer,
- Manual hard coil guiding and swing group,
- 1.50 kW Servo motor,
- Power : 1.50 kW
- Max Speed : 2000 rpm
- Encoder : 2500 pulse
- Nominal Torque : 7.5 Nm
- Max Torque : 18.75 Nm
- 7″ Touch screen,
- Electronic components (Driver, Motor, PLC, Screen),
- Plotting system,
- Memory for 999 molds (Based on creating special recipes),
- Electronic panel design provides ease of use for the operator,
- Manually adjustable with 8-level adjustable M12 stud,
- The product is manufactured by connecting to the press,
- Produces sheet fed from the roll, ensuring the final product meets the desired quality.
- Depending on the sheet thickness, a roller group with a diameter of Ø80 can be used.
- 400 mm wide sheet rolling,
- Rolling capacity for sheets in the range of 0.30 – 2 mm thickness,
- Ø60 induction rolling rollers (57-62 Rockwell hardness),
- Driven by gear group with independent movement,
- Press with short stroke pneumatic piston (4 Bar),
- Angled swing system in the upper roller group,
- Manual locking of the upper roller group,
- 70 Body low backlash servo reducer,
- Manual hard coil guiding and swing group,
- 2 kW Servo motor,
- Power : 2 kW
- Max Speed : 2000 rpm
- Encoder : 2500 pulse
- Nominal Torque : 10 Nm
- Max Torque : 25 Nm
- 600 mm wide sheet rolling,
- Rolling capacity for sheets in the range of 0.30 – 2 mm thickness,
- Ø60 induction rolling rollers (57-62 Rockwell hardness),
- Driven by gear group with independent movement,
- Press with short stroke pneumatic piston (4 Bar),
- Angled swing system in the upper roller group,
- Manual locking of the upper roller group,
- 70 Body low backlash servo reducer,
- Manual hard coil guiding and swing group,
- 3 kW Servo motor,
- Power : 3 kW
- Max Speed : 2000 rpm
- Encoder : 2500 pulse
- Nominal Torque : 14.3 Nm
- Max Torque : 35.75 Nm
- 7″ Touch screen,
- Electronic components (Driver, Motor, PLC, Screen),
- Plotting system,
- Memory for 999 molds (Based on creating special recipes),
- Electronic panel design provides ease of use for the operator,
- Manually adjustable with 8-level adjustable jack,
- The product is manufactured by connecting to the press,
- Produces sheet fed from the roll, ensuring the final product meets the desired quality,
- Depending on the sheet thickness, a roller group with a diameter of Ø80 can be used.
