Hydraulic uncoilers are used to unwind large and heavy metal coils in the metalworking and sheet metal forming industries.
performs its functions. Working using a hydraulic system, these openers offer high power and precision.
By opening heavy metal sheet rolls safely and effectively, operations that cannot be done manually
makes it easier. By providing a continuous and smooth material flow to metal processing machines,
It allows production processes to continue uninterruptedly and efficiently.
Hydraulic systems enable thick and heavy rolls to be opened by applying higher pressure and force.
It offers superior performance in situations requiring high precision. These openers are suitable for manual opening of large and heavy rolls.
It increases occupational safety and increases workforce efficiency in situations where opening is dangerous and time-consuming.
raises. Hydraulic uncoilers offer higher power and capacity for unrolling thick and heavy rolls.
While effective, mechanical uncoilers are suitable for lighter and medium weight rolls.

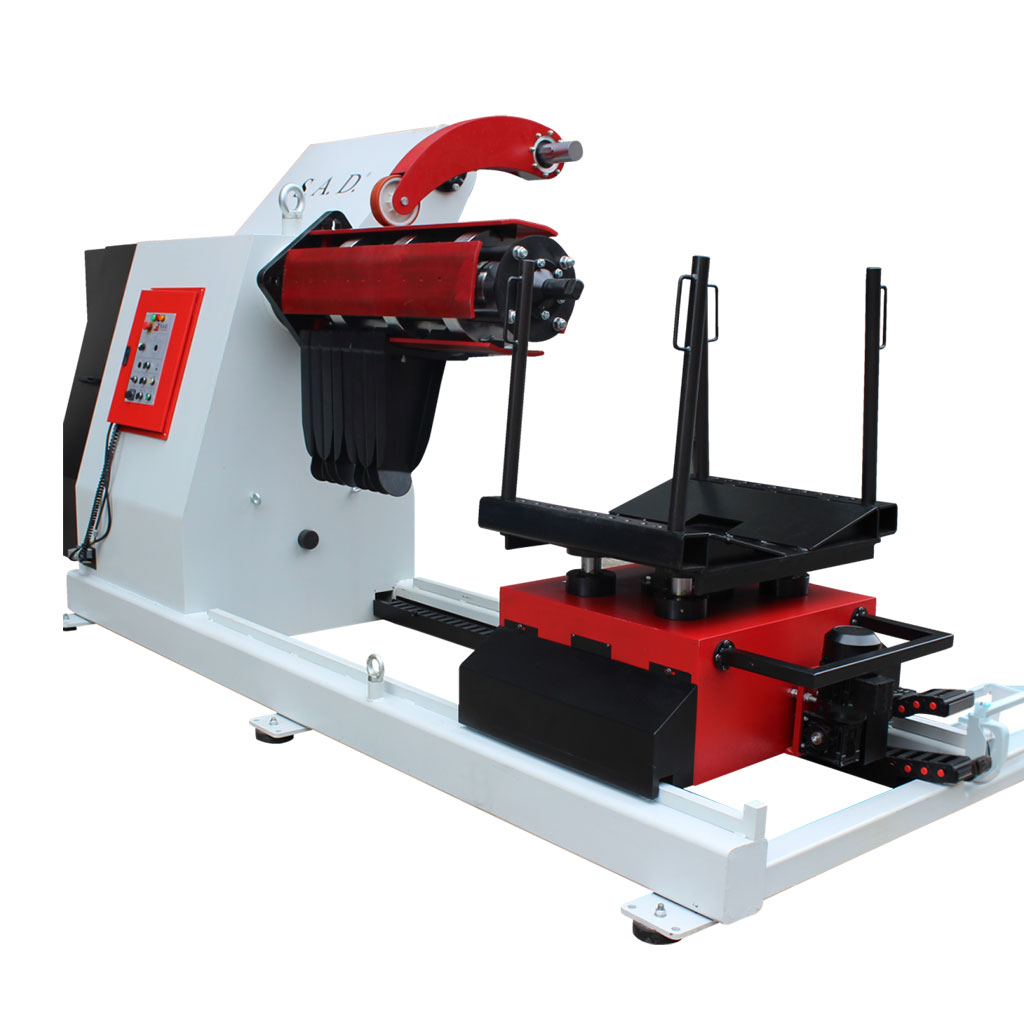

Hydraulic Uncoilers
Pneumatic top pressure system,
Hydraulically driven chuck system,
Hydraulic on-off, locking and safety valves,
Roll inner diameter min. 400mm – max. 500mm,
Roll outer diameter max. 1600mm,
Unrolling speed Min/22 mt,
Quadruple V-belt pulley system,
Speed control system (inverter),
Two-way working system (unwinding and wrapping),
Drum stop-start movement is laser sensor controlled,
loading car,
Hydraulic upper and lower pressure system,
- 3000 Kg roll carrying capacity,
- 400 mm roll band width,
- Pneumatic upper pressure system,
- Hydraulic-driven mandrel system,
- 20-liter hydraulic tank,
- Hydraulic opening-closing, locking, and safety valves,
- 100×150 hydraulic piston system,
- Roll inner diameter min. 400 mm – max. 500 mm,
- Roll outer diameter max. 1600 mm,
- 2.2 kW asynchronous motor,
- 110 Frame i50 gear reducer,
- Roll unwinding speed of 22 meters per minute,
- Quadruple V-belt pulley system,
- Speed control system (inverter),
- Bidirectional operation system (unwinding and rewinding),
- Drum stop-start motion is laser sensor controlled,
- Roll core clamping system, pneumatic upper pressure, and loading cart movements,
Optional features,
- Roll band width from 600 mm to 800 mm,
- Loading cart,
- Hydraulic upper and lower pressure system,
- 4000 Kg roll carrying capacity,
- 400 mm roll band width,
- Pneumatic upper pressure system,
- Hydraulic-driven mandrel system,
- 20-liter hydraulic tank,
- Hydraulic opening-closing, locking, and safety valves,
- 100×150 hydraulic piston system,
- Roll inner diameter min. 400 mm – max. 500 mm,
- Roll outer diameter max. 1600 mm,
- 2.2 kW asynchronous motor,
- 110 Frame i50 gear reducer,
- Roll unwinding speed of 22 meters per minute,
- Quadruple V-belt pulley system,
- Speed control system (inverter),
- Bidirectional operation system (unwinding and rewinding),
- Drum stop-start motion is laser sensor controlled,
- Roll core clamping system, opens and closes by turning the shaft with an external manual control system, pneumatic upper pressure, and loading cart movements,
Optional features,
- Roll band width from 600 mm to 800 mm,
- Loading cart,
- Hydraulic upper and lower pressure system,
- 6000 Kg roll carrying capacity,
- 600 mm roll band width,
- Pneumatic upper pressure system,
- Hydraulic-driven mandrel system,
- 30-liter hydraulic tank,
- Hydraulic opening-closing, locking, and safety valves,
- 100×150 hydraulic piston,
- Roll inner diameter min. 400 mm – max. 500 mm,
- Roll outer diameter max. 1600 mm,
- 3 kW asynchronous motor,
- 110 Frame i80 gear reducer,
- Roll unwinding speed of 22 meters per minute,
- Quadruple V-belt pulley system,
- Speed control system (inverter),
- Bidirectional operation system (unwinding and rewinding),
- Drum stop-start motion is laser sensor controlled,
- Roll core clamping system, opens and closes by turning the shaft with an external manual control system, pneumatic upper pressure, and loading cart movements,
Optional features,
- Roll band width from 800 mm to 1000 mm,
- Loading cart,
- Hydraulic upper and lower pressure system,
- Pneumatic braking system,
- 8000 Kg roll carrying capacity,
- 400 mm roll band width,
- Pneumatic upper pressure system,
- Hydraulic-driven mandrel system,
- 30-liter hydraulic tank,
- Hydraulic opening-closing, locking, and safety valves,
- 100×150 hydraulic piston system,
- Roll inner diameter min. 400 mm – max. 500 mm,
- Roll outer diameter max. 1600 mm,
- 3 kW asynchronous motor,
- 110 Frame i80 gear reducer,
- Roll unwinding speed of 22 meters per minute,
- Quadruple V-belt pulley system,
- Speed control system (inverter),
- Bidirectional operation system (unwinding and rewinding),
- Drum stop-start motion is laser sensor controlled,
- Roll core clamping system, pneumatic upper pressure, and loading cart movements,
Optional features,
- Roll band width from 600 mm to 800 mm,
- Loading cart,
- Hydraulic upper and lower pressure system,
